You can name layers to help track content, and lock layers so they can't be altered. As with overlays, you can display, edit, and print layers separately or in combination. With CAD, layers are equivalent to transparent overlays. For example, a building plan might contain separate overlays for its structural, electrical, and plumbing components. With manual drafting, you can separate information onto individual transparent overlays. Sample Manual Drafting Work - Ammonia print CAD Is Flexible To Organize Drawing Information You scale the views in viewports by zooming in or out. Layout viewports are areas, similar to picture frames or windows, through which you can see your model. It typically contains a border, title block, dimensions, general notes, and one or more views of the model displayed in layout viewports. You can then create a layout for that model in an environment called paper space.Ī layout represents a drawing sheet. With CAD, you first draw your design, or model, in a working environment called model space. Then you determine the location for views' plans, elevations, sections, and details. When you draft manually, you first select a sheet, which usually includes a pre-printed border and title block. Lay Out The Drawing Conveniently: Another Merit of CAD With CAD, you first decide what units of measurement you will use, and then draw your model at 1:1 scale, should one of the main benefits of CAD. This scale compares the size of the actual object to the size of the model drawn on paper. With manual drafting, you must determine the scale of a view before you start drawing.
The advantages of CAD include: the ability to producing very accurate designs drawings can be created in 2D or 3D and rotated other computer programmes can be linked to the design software. One of the Benefits of CAD is to Draw to Scale

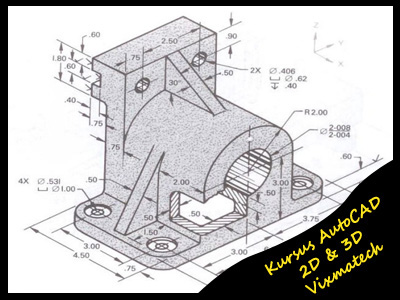

The image representing a sample CAD drafting work which shows dimensions, notes and how to use legends in CAD Drawings. What are the Advantages of using Computer Aided Design (CAD) over Manual Drafting? Here we look into brief comparison between CAD Drafting over Manual drafting. All these difficulties and pressures over-ridden by Computer Aided Design Drafting (CAD Drafting) technology. It was mainly due to tremendous efforts they had taken to produce both new drawings or edited/updated drawings.Įvery lines, shapes, measurements, scaling of the drawings - all made them headache to the design / drafting field. In our olden days, engineers, designers and draughtsmen were struggling to produce and submit engineering drawings in their scheduled times.
